The range of MVE-type External Electric Vibrators is the result of extensive experience in vibrating technology focused on a wide variety of industrial applications worldwide. Typical applications for the MVE-type External Electric Vibrators include: material flow aids used on bins and hoppers, power plants for screening, conveying, and feeding as well as variety of emptying, cleaning, detaching, compacting, and sorting applications. Many of the world’s most notable manufacturers in industries from asphalt, agriculture, chemicals, concrete, construction, food processing, foundries, mining, recycling and water treatment trust OLI vibrators to meet their strict performance standards. Because of this, each motor is individually tested for mechanical and electrical performance before shipping to the customer. In addition to high quality standards, benefits of OLI Electric Vibrators are: long bearing life, low noise output, and low maintenance requirements. OLI USA is an ISO:9001 company headquartered just outside of Atlanta in Duluth, GA. Fifty years of experience and membership in a large, international group of industrial equipment, manufacturing companies have positioned OLI as a world leader within the vibrating motor industry.
$216.95 Original price was: $216.95.$94.99Current price is: $94.99.
SKU: OLI Vibrator WBB783794 Categories: AC Electric Vibrators, Vibrators Tags: 0.15 HP, 100, 3, Aluminum Frame, Motors & Power Transmission, OLI Vibrator, T4
- Hassle-Free Payments
- Effortless Shopping, Quality Products
- 100% High Quality Guarantee
- fast shipping

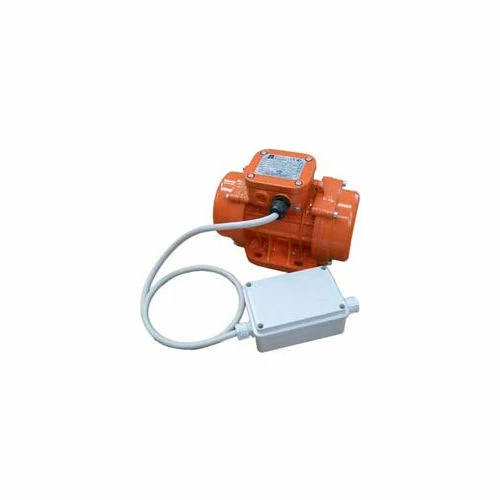

OLI Vibrators Standard Electric Vibrator MVE 220/2M, 3600RPM, Single Phase, 60HZ, 115V, 2Pole
| Unbalance Weight @ 60Hz | 0.57 lbs |
|---|---|
| Amps Max Y | 1.30 A |
| Warranty | 2 yr |
| Max Force @ 50Hz | 216 lbs |
| Poles | 2 |
| Features | 8mF Capacitor |
| Description | Standard Electric Vibrator |
| Amps Max Y @ 50Hz/230V | 0.54 A |
| Input Power Horsepower @ 50Hz | 0.13 HP |
| Voltage | 115 V |
| Cable Gland | M16 |
| Max Force @ 60Hz | 209 lbs |
| Amps Max Y @ 50Hz/400V | 0.54 A |
| Hertz | 60 Hz |
| RPM | 3600 rpm |
| Weight @ 50 Hz | 10 |
| Brand | OLI Vibrator |
| Manufacturers Part Number | MVE 220/2M |
| Phase | 1 |
| Amps Max Y @ 60Hz/460V | 1.3 A |
| Motor | AC |
| Material | Aluminum Frame |
| Ia/In @ 50Hz | 3 |
| Input Power Horsepower @ 60Hz | 0.15 HP |
| Ia/In @ 60Hz | 3 |
| Class II Division 2 Temperature Class | T4 |
| III D Temperature Class C | 100 |
| Unbalance Weight @ 50Hz | 0.85 lbs |
| Weight @ 60 Hz | 10 |
| Certifications | CE, UL, CSA, Class 2 Div 2, And GOST Certifications |
