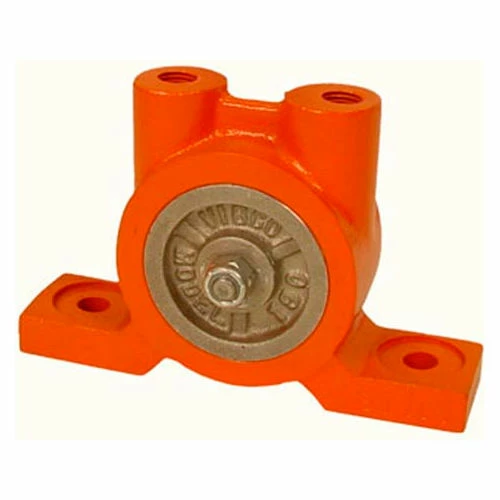

BV series are dual mount Ball style vibrators, designed for applications requiring medium amounts of vibration. Threaded exhaust port allows for porting air to remote location if necessary. 80 PSI max. operating pressure, 16000 VPM, at 11 CFM of air, with 260 lbs of force. Ball style vibrators must have a filter regulator and lubricator for proper operation. Exhaust mufflers are available for quieter operation.
| Dimension A | 4 in |
|---|---|
| Speed VPM @ 80 PSI | 16000 |
| Force Newtons | 1157 N |
| Outlet | 1/4" NPT |
| Enclosure Type | Totally Enclosed |
| CFM @ 80 PSI | 11 CFM |
| Adjustable Speed Option | Yes |
| Series | BV |
| CFM @ 60 PSI | 10 CFM |
| Brand | Vibco Vibrators |
| Manufacturers Part Number | BV-190 |
| Inlet | 1/4-NPT |
| Material | Cast Iron Threaded Exhaust |
| Dimension R | 1.25 in |
| SpeedVPM @ 60 PSI | 14000 |
| Speed VPM @ 40 PSI | 12000 |
| CFM @ 40 PSI | 6 CFM |
| Width | 5.5 in |
| Length | 2.25 in |
| Force Weight | 260 lbs |
| Dimension G | 1.875 in |
| Height | 3.5625 in |
| Dimension C | 0.375 in |
| Dimension F | 40437 in |
| Max Weight Material in Bin | 2600 lbs |
| Decibels | 77 |
