Original price was: $208.95.$98.99Current price is: $98.99.
- Hassle-Free Payments
- Effortless Shopping, Quality Products
- 100% High Quality Guarantee
- fast shipping

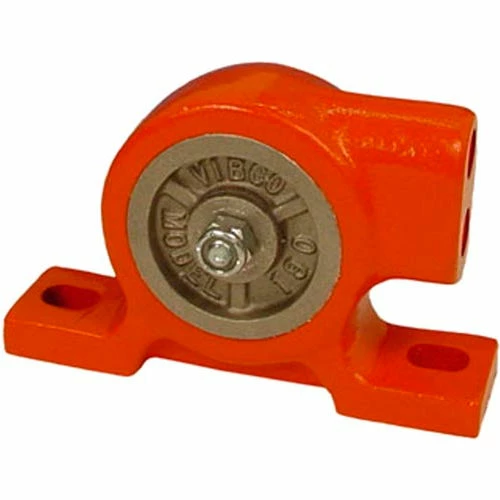

V series are foot mount Ball style vibrators, designed for applications requiring medium amounts of vibration. Threaded exhaust port allows for porting air to remote location if necessary. 80 PSI max operating pressure, 16000 VPM, at 11 CFM of air, with 260 lbs of force. Ball style vibrators must have a filter regulator and lubricator for proper operation. Exhaust mufflers are available for quieter operation.
| Dimension K | 2.625 in |
|---|---|
| Material | Cast Iron Threaded Exhaust |
| Force Newtons | 1157 N |
| Outlet | 1/4" NPT |
| Enclosure Type | Totally Enclosed |
| CFM @ 80 PSI | 11 CFM |
| Adjustable Speed Option | Yes |
| Series | V |
| CFM @ 60 PSI | 10 CFM |
| Brand | Vibco Vibrators |
| Manufacturers Part Number | V-190 |
| Inlet | 1/4-NPT |
| Speed VPM @ 80 PSI | 16000 |
| SpeedVPM @ 60 PSI | 14000 |
| Dimension A | 4 in |
| Speed VPM @ 40 PSI | 12000 |
| CFM @ 40 PSI | 6 CFM |
| Width | 5.0625 in |
| Length | 2.1875 in |
| Force Weight | 260 lbs |
| Dimension G | 0.875 in |
| Height | 3.1875 in |
| Dimension C | 0.375 in |
| Dimension F | 40437 in |
| Max Weight Material in Bin | 2600 lbs |
| Dimension R | 1.3125 in |
| Decibels | 73 |
