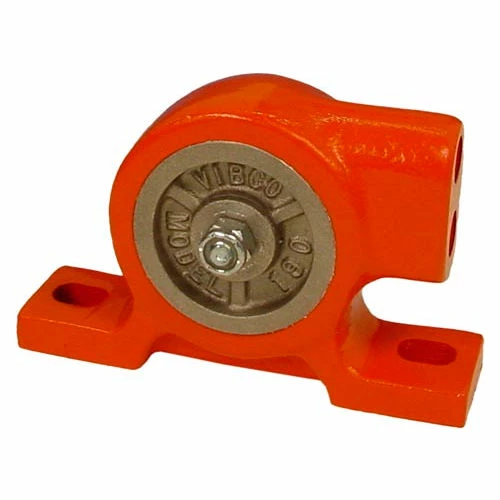

V series are foot mount Ball style vibrators, designed for applications requiring medium amounts of vibration. Built in side exhaust port allows for quiet operation of air to remote location if neccessary. 80 PSI max operating pressure, 16000 VPM, at 11 CFM of air, with 260 lbs of force. Ball style vibrators must have a filter regulator and lubricator for proper operation.
| Dimension K | 2.625 in |
|---|---|
| Material | Cast Iron Foot Mount |
| Force Newtons | 1157 N |
| Outlet | 1/4" NPT |
| CFM @ 80 PSI | 11 CFM |
| Adjustable Speed Option | Yes |
| Series | V |
| CFM @ 60 PSI | 10 CFM |
| Brand | Vibco Vibrators |
| Manufacturers Part Number | V-19SE |
| Inlet | 1/4-NPT |
| Speed VPM @ 80 PSI | 16000 |
| SpeedVPM @ 60 PSI | 14000 |
| Dimension A | 4 in |
| Speed VPM @ 40 PSI | 12000 |
| CFM @ 40 PSI | 6 CFM |
| Width | 5.0625 in |
| Length | 2.1875 in |
| Force Weight | 260 lbs |
| Dimension G | 0.875 in |
| Height | 3.1875 in |
| Dimension C | 0.375 in |
| Dimension F | 40437 in |
| Max Weight Material in Bin | 2600 lbs |
| Dimension R | 1.3125 in |
| Decibels | 73 |
