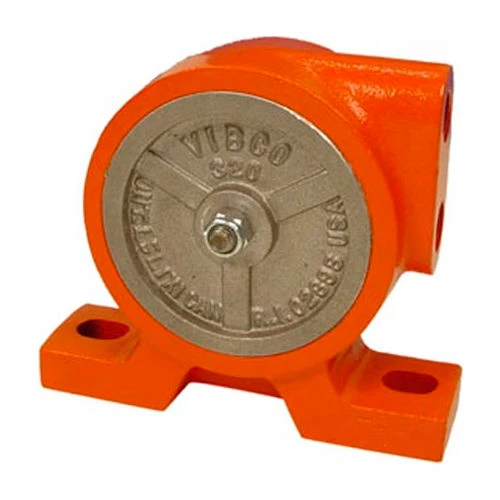

V series are foot mount Ball style vibrators, designed for applications requiring medium amounts of vibration. Threaded exhaust port allows for porting air to remote location if necessary. 80 PSI max operating pressure, 10000 VPM, at 17 CFM of air, with 650 lbs of force. Ball style vibrators must have a filter regulator and lubricator for proper operation. Exhaust mufflers are available for quieter operation.
| Dimension K | 4.125 in |
|---|---|
| Material | Cast Iron Threaded Exhaust |
| Force Newtons | 2892 N |
| Outlet | 3/8" NPT |
| Enclosure Type | Totally Enclosed |
| CFM @ 80 PSI | 17 CFM |
| Adjustable Speed Option | Yes |
| Series | V |
| CFM @ 60 PSI | 14 CFM |
| Brand | Vibco Vibrators |
| Manufacturers Part Number | V-320 |
| Inlet | 3/8-NPT |
| Speed VPM @ 80 PSI | 10000 |
| SpeedVPM @ 60 PSI | 8900 |
| Dimension A | 4 in |
| Speed VPM @ 40 PSI | 7500 |
| CFM @ 40 PSI | 12 CFM |
| Width | 5.5625 in |
| Length | 2.75 in |
| Force Weight | 650 lbs |
| Dimension G | 1.375 in |
| Height | 4.875 in |
| Dimension C | 0.5 in |
| Dimension F | 0.75 in |
| Max Weight Material in Bin | 6500 lbs |
| Dimension R | 1.5 in |
| Decibels | 78 |
