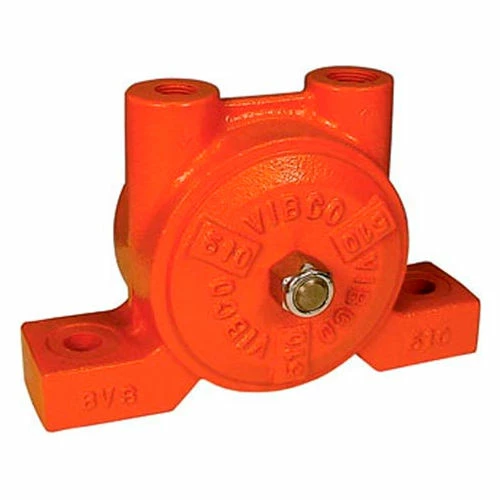

Vibco Silent Pneumatic Turbine Vibrator – BVS-510

BVS series Silent Pneumatic Turbine Vibrator. Threaded exhaust port. Cast iron housing standard (Aluminum available). 4500 VPM, 21 CFM, @ 80 PSI, with 900 lbs of force, continuous duty. No lubrication required. Factory recommends filter/regulator for optimum performance.

Dimension F

1.25 in
CFM @ 80 PSI

21 CFM
Decibels

77
Force Newtons

4004 N
Manufacturers Part Number

BVS-510
Inlet

1/2-NPT
Speed VPM @ 80 PSI

4500
Material

Cast Iron Threaded Exhaust
Outlet

3/4" NPT
SpeedVPM @ 60 PSI

4000
Enclosure Type

Totally Enclosed
Adjustable Speed Option

Yes
Dimension C

0.625 in
Series

BVS
CFM @ 60 PSI

18 CFM
Width

8.9375 in
Length

4.75 in
Max Weight Material in Bin

9000 lbs
Force Weight

900 lbs
Dimension R

2.25 in
Dimension G

3.4375 in
Height

5.75 in
Dimension A

7 in
Brand

Vibco Vibrators
